Beside Press Granulators

Rotor diam. 250

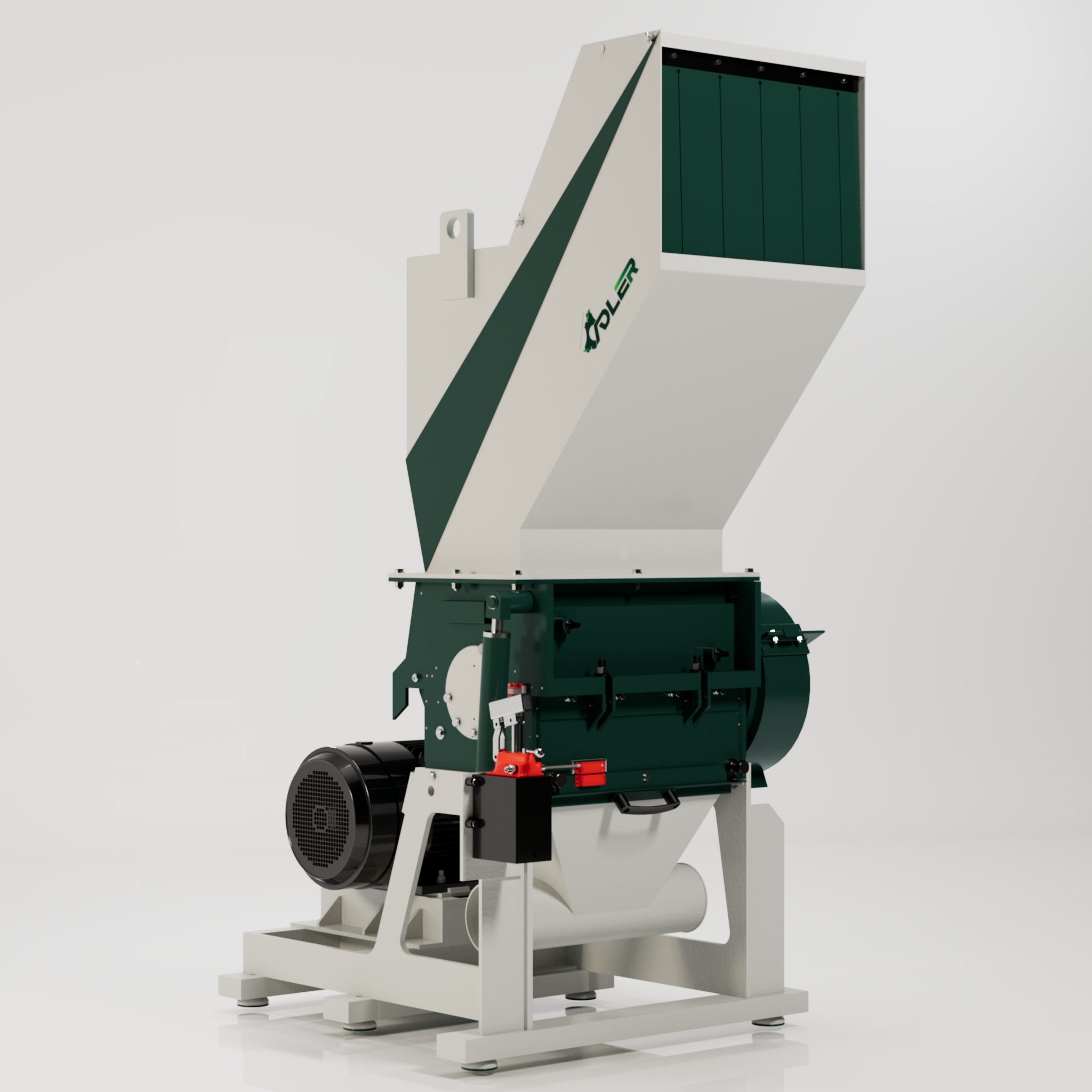

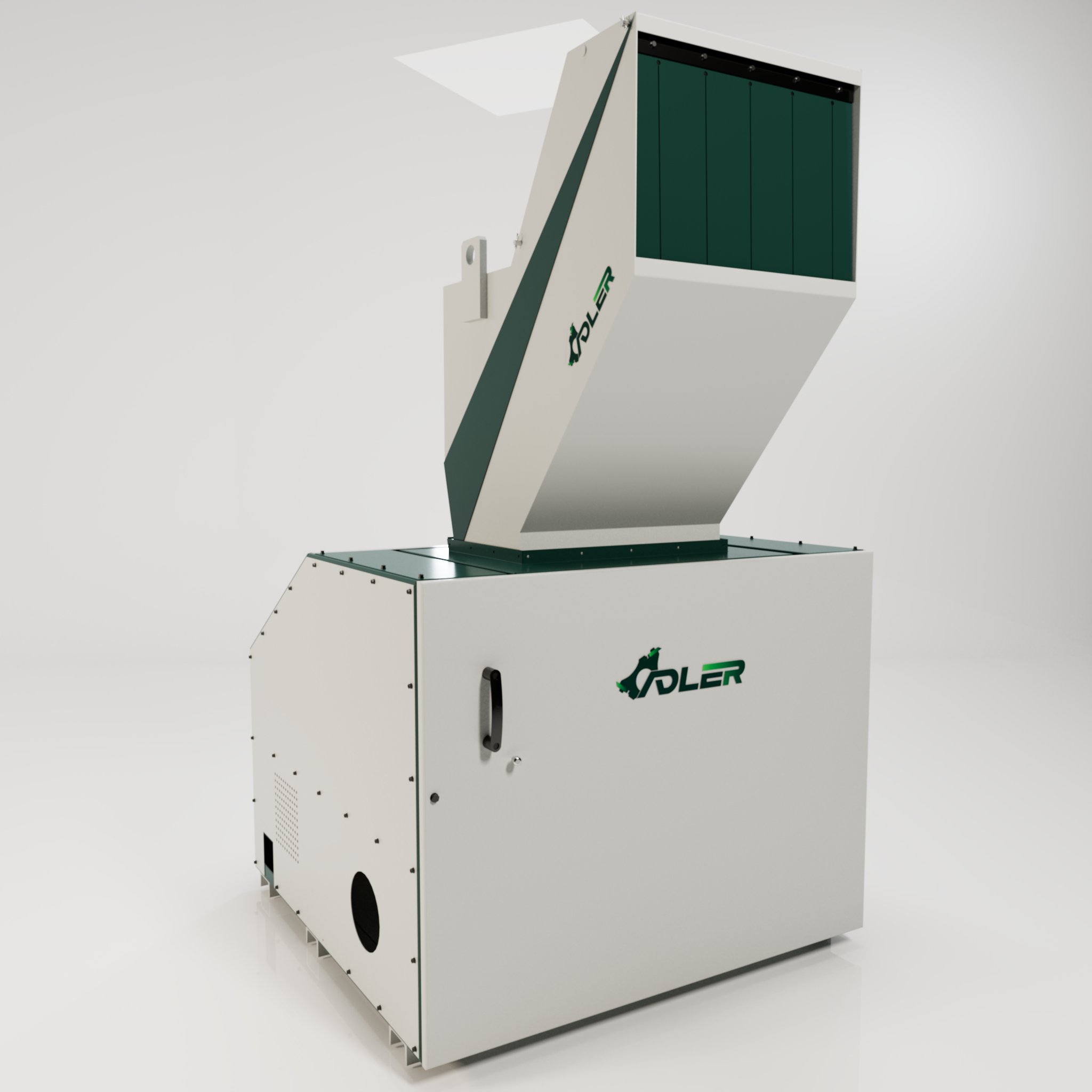

The A series of blade granulator is specifically designed for the recovery of production waste and small to medium size. These machines stand out for their heavy duty and versatility, ensuring high performance in intensive industrial environments.

Features and Advantages

Compact with high performance

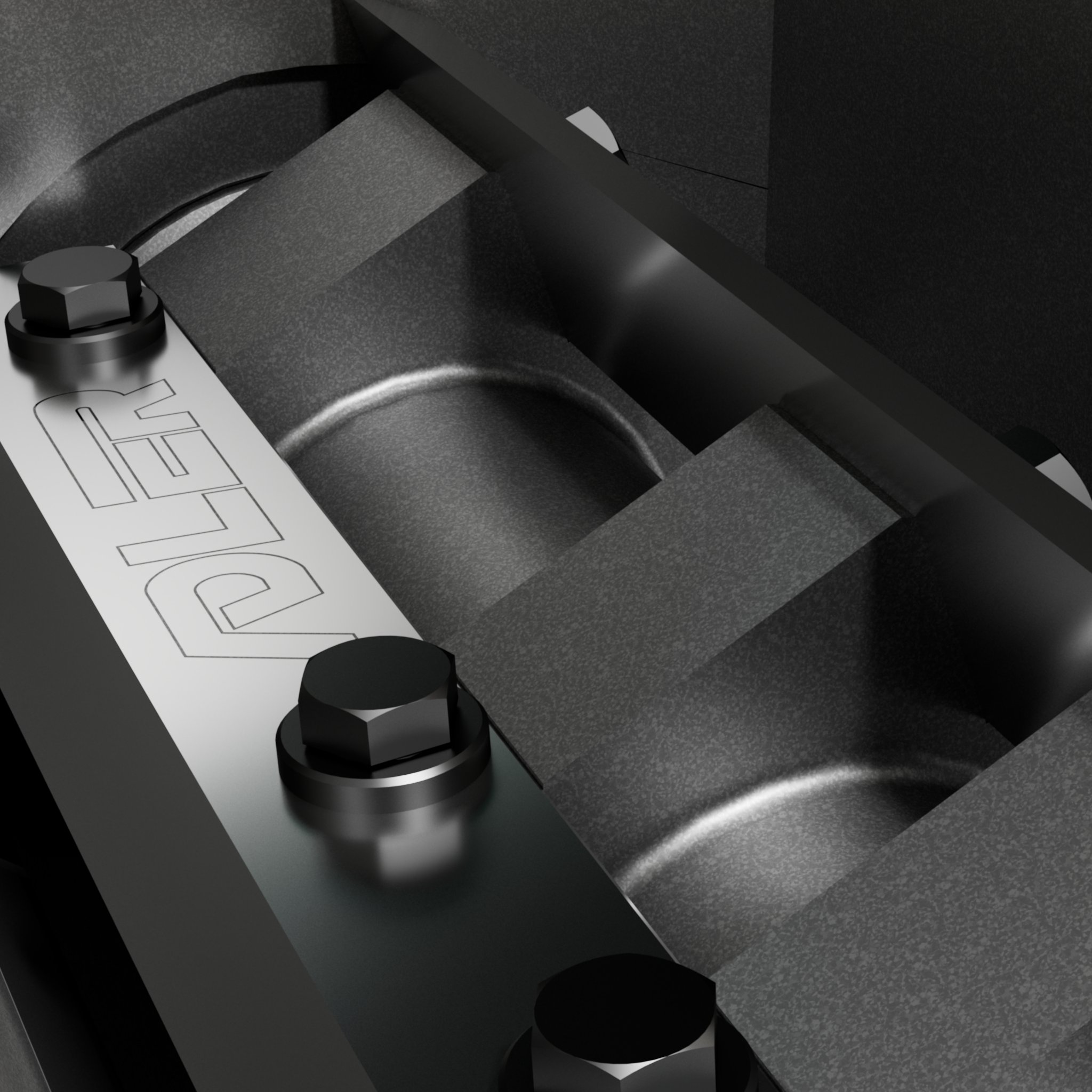

Full rotor without welds
Wear and corrosion resistant material
Ease of maintenance

Thanks to a system of sharp blades and a high-speed rotor, the A series grinders precisely shred materials, producing uniform fragments ready for recycling or reuse. Their modular configuration allows them to adapt to different types of materials and applications, making them an ideal solution for optimizing production processes and reducing waste.

Moulding scraps - Extruded profiles - Tubes - Bottles - Blow-moulding items - Films - Sheets

TYPE	HOURLY OUTPUT	MOUTH	BLADES	ROTOR DIAM.	MOTOR	DIMENSIONS	WEIGHT
A-60	60x400 kg./H	600x500 mm	600 mm	250 mm	15-30 HP	1.250x1.000 mm	1.000 Kg
A-90	60/700 Kg./H	900x500 mm	900 mm	250 mm	15-40 HP	1.250x1.400 mm	1.400 Kg
A-120	60/1000 Kg./H	1.200x500 mm	1.200 mm	250 mm	30-40 HP	1.250x1.850 mm	1.800 Kg

Industry 4.0

Big-Bag Holder structure

Soundproofing

Aspirator / Auger
